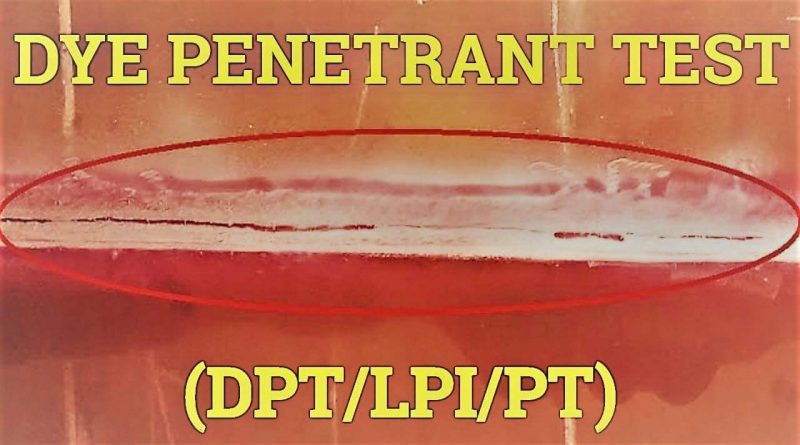

Dye Penetrant Test (DPT, LPI, PT) – Non Destructive Test

Dye Penetrant Test (DPT) is also known as Liquid Penetrant Inspection (LPI) or Penetrant Test (PT). It is one of the most widely used Non Destructive Test (NDT) methods. It can be used to inspect almost all non-porous materials such as metals, plastics, ceramics etc. We can detect any surface discontinuity (or flaw) such as surface cracks, porosity, pinholes etc. by this test method.

Principle: DPT is based upon a natural phenomenon called as CAPILLARY ACTION. By the virtue of capillary action, a liquid tends to flow or seep in narrow spaces (or openings) even against the external forces like gravity. This phenomenon occurs due to the molecular attraction.

STEPS TO BE FOLLOWED FOR DYE PENETRANT TEST:

Procedure for Dye Penetrant Test can vary depending upon the factors such as the penetrant system being used and the condition and environment under which the inspection is performed. However, the general steps which are to be followed are as below;

  1. Surface Preparation: The surface must be thoroughly cleaned, to make it free from dirt, oil, paint, grease, water, or other contaminants. For cleaning one can use dry cloth, solvents, cleaner, rust remover etc. depending on the condition of the surface to be inspected.

  2. Penetrant Application: After thorough cleaning, Penetrant is applied. Penetrant is a red colored Liquid. It can be applied on the surface by spraying (most common) or by brushing or by immersing the entire surface in a penetrant bath. Temperature of the surface shall be between 5OC to 52OC.

  3. Dwell period: Leave the penetrant, as it is, on the surface for a minimum period of time (Known as Dwell Time or Dwell Period). During dwell period, penetrant seeps into the flaws (if present on the surface being inspected), due to Capillary action. Dwell period varies from 5 minutes to 60 minutes or even more than that depending upon the material and its service condition. Penetrant manufacturer also mentions the dwell period on the product itself. However, there is no harm in going beyond the minimum dwell period, provided that the temperature shall be ambient, because at elevated temperature chances of penetrant getting evaporated will be always there. Hence at elevated temperature, one should strictly restrict to the recommended dwell time.

  4. Removal of excess penetrant: After leaving the surface for recommended dwell period, the penetrant shall be cleaned, for cleaning the excess penetrant cloth and penetrant removal shall be used. While cleaning the excess penetrant, two things shall be taken care of;

  • Cleaning should be unidirectional i.e. cleaning shall be done in one direction only. To and fro cleaning shall be avoided.
  • Penetrant remover/cleaner shall not be applied directly on the surface rather apply the penetrant remover/cleaner on the cloth and that cloth should be used for cleaning.

(Method of cleaning may vary, depending on the type of penetrant used)

  1. Application of Developer: After thorough cleaning, a thin layer of developer is applied. Two things shall be taken care of while spraying the developer;

  • Shake the bottle rigorously
  • Maintain a distance of 10 to 12 inches from the surface, while spraying the developer
  • After spraying the developer wait for 10 minutes to 60 minutes (development time)

Developer sucks the trapped penetrant on the surface, from the flaws (if present). That is the penetrant bleeds out on the surface and it appears in a sharp red color. Developer is a white color liquid and hence the penetrant appears in a sharp red color, hence we can easily identify the flaws.

  1. Inspection: After application of developer wait for 10 to 60 minutes and then perform the inspection. Appropriate lighting is necessary to detect the indications from any flaws which may be present. Minimum light required is 1000 Lux or 100 foot candles.

Advantages of Dye Penetrant Test:

  • One of the major advantage of Dye penetrant test (DPT) is it’s portability. The Penetrant testing kit (Penetrant/cleaner/developer) are very light weight and small in size, hence can be easily transported at any place.
  • Dye Penetrant test is quite inexpensive as compared to other non-destructive methods viz. MT, UT, RT and ET etc.
  • DPT is very sensitive and small discontinuities can also be detected easily.
  • Almost all non-porous materials such as metals, plastics, ceramics etc. can be inspected by DPT.
  • This test consumes very less time; hence material could be inspected rapidly.
  • Complex geometric shapes can also be inspected with ease.

Disadvantages of Dye Penetrant Test:

  • One of the major disadvantage of Dye penetrant test (DPT) is that only surface flaws or discontinuities can be inspected.
  • Requires pre-cleaning of the surface to be inspected.
  • Only Non-porous materials can be inspected.
  • Requires post cleaning
  • Requires proper handling and disposal of chemicals.

Also read Ultrasonic test (UT) basics

Also read Radiography testing (RT)

Also read Angle probe calculation for Ultrasonic test (UT)

Also read: Thickness range for welder qualification test

Watch this demo video to understand the steps involved for doing Dye penetrant test.

Following photographs is for your better understanding;

Dye penetrant test (DPT) photo

Liquid Penetrant test (LPT/LPI) photo

Penetrant test (PT) photo

Penetrant test (PT) photo

Liquid penetrant inspection (LPI) photograph



Sandeep Anand

I am a Mechanical Engineer with more than ten years of work experience in the field of welding and NDT.
